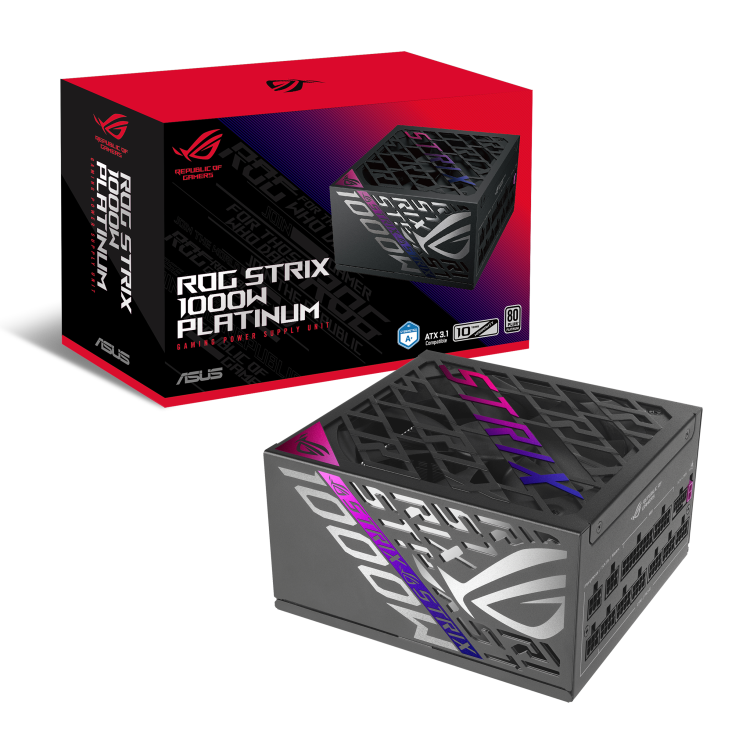

FUENTE 1000W ASUS 80 PLUS ROG STRIX 1000P PLATINUM

Modelo
ROG STRIX 1000W Platinum
5.0
(2)
5.0 de 5 estrellas. 2 reseñas
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensiones
160 x 150 x 86 mm
Eficiencia
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Características de protección
OPP/OVP/UVP/SCP/OCP/OTP
Materiales peligrosos
ROHS
Rango de entrada de CA
100-240Vac
Voltaje de la salida DC
+3.3V +5V +12V -12V +5Vsb
Carga máxima
25A 25A 83.3A 0.3A 3A
Combined Load
130W 130W 1000W 3.6W 15W
Entrega total
1000W

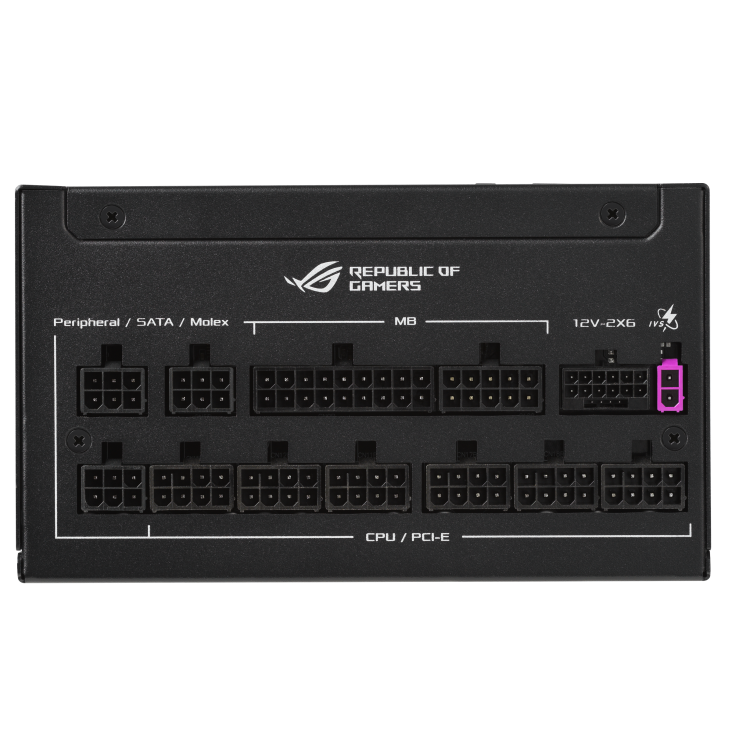

Conectores
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Contenido del paquete
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Weight
1.81 kg (single PSU)
Cybenetics Noise Level Certification
A+
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load

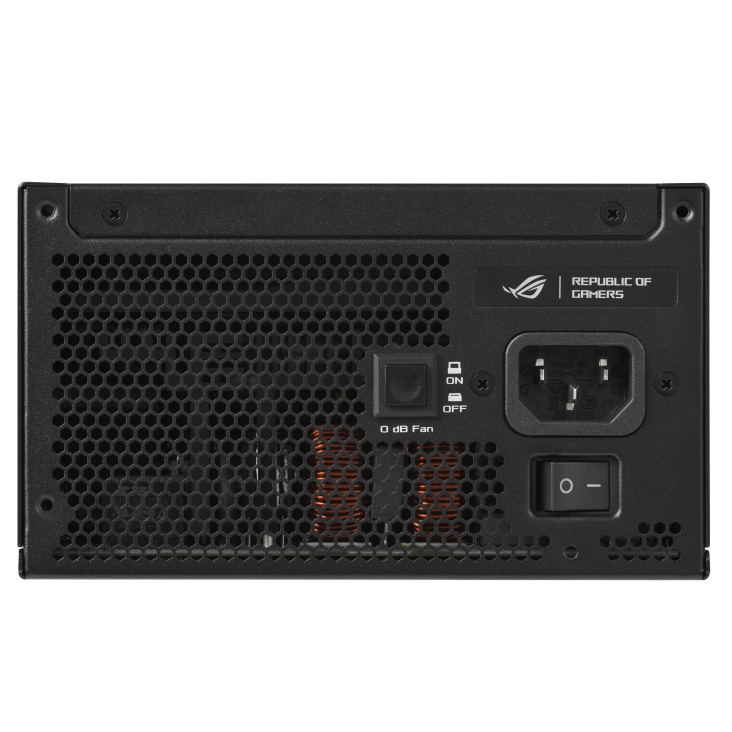

0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
