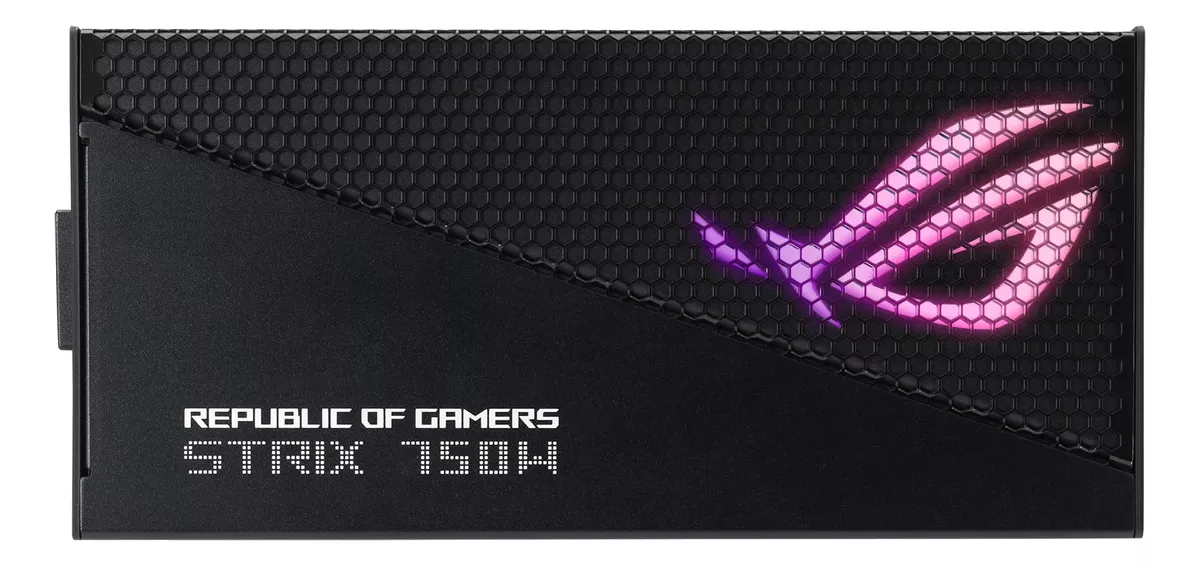

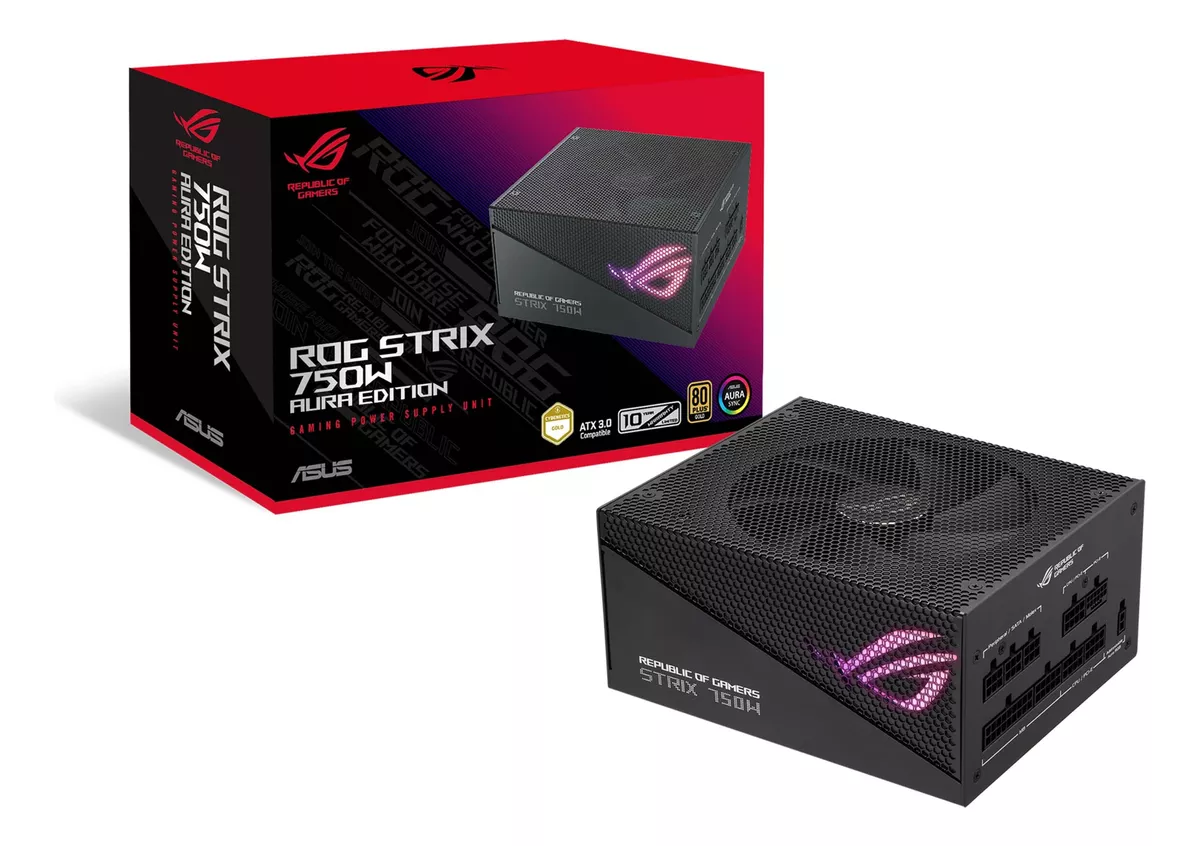

FUENTE 750W ASUS ROG STRIX GOLD AURA EDITION

Model ROG STRIX 750W Gold Aura Edition
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensiones
180 x 150 x 86 mm
Eficiencia
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Características de Protección
OPP/OVP/UVP/SCP/OCP/OTP
Materiales Peligrosos
ROHS
Rango de Entrada de CA
100-240Vac
Voltage de Salida DC
+3.3V +5V +12V -12V +5Vsb
Carga Máxima
22A 22A 62.5A 0.3A 3A
Combined Load
120W 120W 750W 3.6W 15W
Salida Total
750W
Conectores
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Contenido del Paquete
Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
Weight
2.689 kg (single PSU)

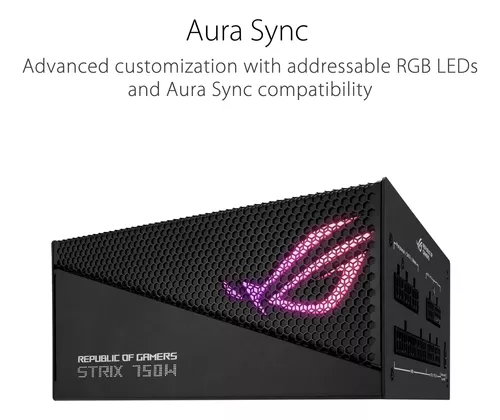

AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
