SWITCH 10P TP-LINK OMADA ES210GMP GIGA 8 POE+ ADM

CARACTERÍSTICAS DE HARDWARE

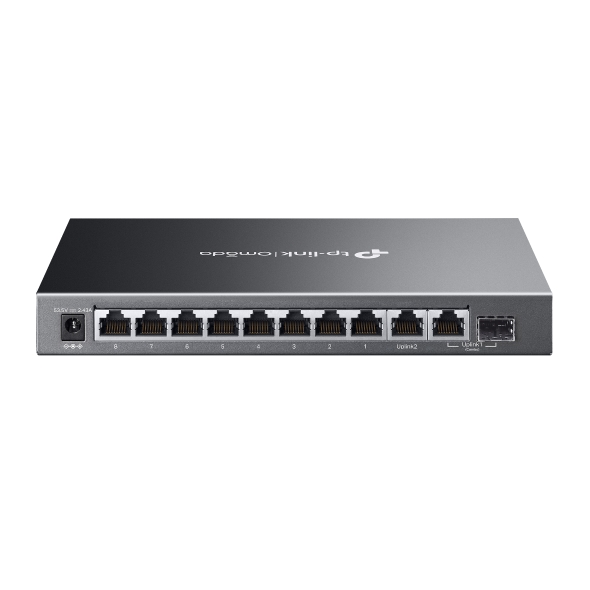

Interfaz • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
• Auto-Negotiation/Auto MDI/MDIX
Cantidad de Ventiladores Fanless
Instalación • Desktop

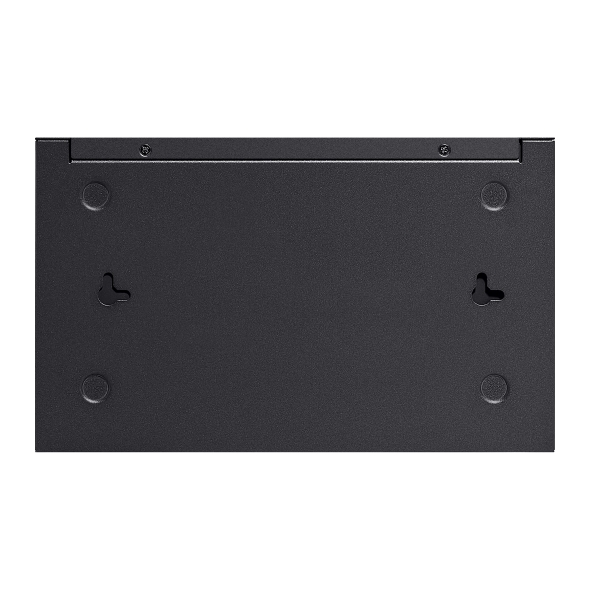

• Wall Mount
Bloqueo de Seguridad Físico v
Fuente de Alimentación DC Power Adapter (Output: 53.5V DC / 2.43A)
Puertos PoE (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 123W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensiones 8.2×4.9×1.0 in (209×126×26 mm)
Surge Protection ±6kV
RENDIMIENTO
Capacidad de Conmutación 20 Gbps
Tasa de Reenvío de Paquetes 14.88 Mpps
Tabla de Direcciones MAC 8K
Memoria del Buffer de Paquete 4 Mbit
Jumbo Frame 15 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control?
Características L2 • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
Multicast L2 • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Método de Transmisión Store-And-Forward
GESTIÓN
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller
Funciones de gestión • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
Otros
Certificaciones FCC, CE, RoHS
Contenido del Paquete • ES210GMP
• Power Adapter
• Installation Guide
• Rubber Feet
Factores Ambientales • Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
