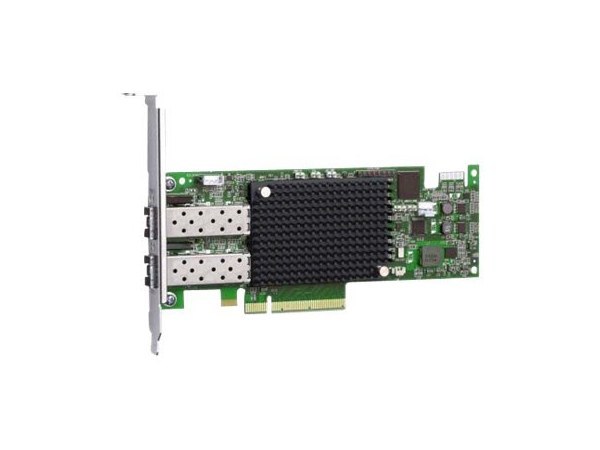

TARJETA HBA IBM 8GB FC EMULEX 2 PUERTOS

TARJETA CONTROLADORA IBM FC HBA 8GB EMULEX 2 PUERTOS

Características:

Standard PCI Express card with low profile form factor

2 independent Fibre Channel ports with optical modules included

PCI Express 2.0 host interface

Support for both standard and low-profile PCI Express slots
Auto-negotiation between 2 Gb, 4 Gb, or 8 Gb link attachments

Processes over 200K I/O operations per second (IOPS), per port
Support for up to 1600 MB per second maximum at full-duplex, per port

Fibre Channel specifications:

Full support for all Fibre Channel topologies, including point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)

Support for F_Port and FL_Port login

Full support for Fibre Channel services class 2 and 3

Up to 4096 FC port logins and up to 4096 concurrent exchanges per FC port

Compatibilidad:
X3100M4
X3250M4
X3300M4
X3500M4
X3550M4
X3630M4
X3650M4
