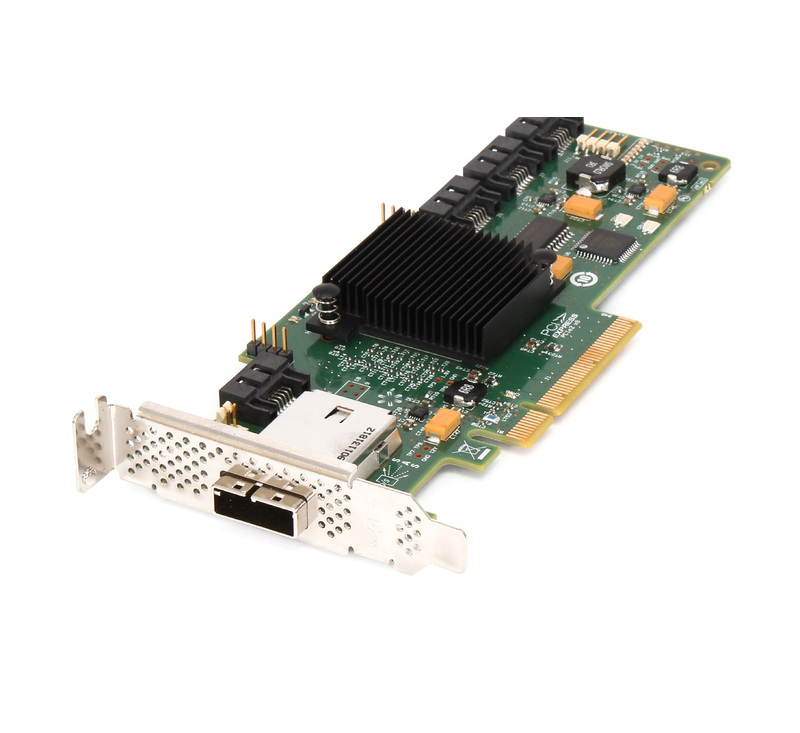

TARJETA HBA IBM 6Gb SAS 1 PUERTO

The IBM 6 Gb SAS Host Bus Adapter has the following specifications:

SAS Controller: LSI SAS2008
8 Puertos SAS/SATA (4 externos, 4 internos)

Transferencia de datos: 6 Gbps por puerto

4 internal SATA x1 connectors
1 external SAS x4 connector (SFF-8088)

PCI Express x8 2.0 host interface

MD2 small form factor
High performance I/O Processor: PowerPC 440 @ 533 MHz
uEFI support
RAID levels : None (uses RAID as provided by external disk enclosures)
Maximum endpoint devices: 512
Power consumption: 13.5 W

Compatibilidad:
x3100 M3
x3200 M3
x3250 M3
x3500 M4
x3550 M3
x3550 M4
x3620 M3
x3630 M3
x3650 M3
x3650 M4
x3690 X5
x3755 M3
x3850 X5
dx360 M4
